EW Papid Single Section
Standard
·Comply with ANSI/EIA RS-310-D,IEC60297-2,DIN41494:PART1;DIN41494:PART7
Material
·SPCC Cold Rolled Steel
Feature
·Knocked down and smaller packaging, easy to transport and carry
·Front and rear frame of specially-made structure, better stability
·Using 13 screw set to assembly the whole cabinet
·It has a pilot pin to help close the front door to aviod mismatch, and the front door can be changed to another way to open
·The cable can be entered from top, bottom, back of the cabinet, suitable to every situation. The incoming cable hole patented,
it can be adjusted, and has the round edge to avoid the cutting to the cable
·Side panel can be opening in rotated way or disassembling, having a space enough to wiring, the side panel can be locked safely from inside without the locker and key
·Installation depth of mounting profile can be available changed
·Static loading 30kg, Protection grade IP20
·Color: RAL7035/RAL7021
|
Main Part |
|
|
|
|
|
|
|
|
|
S/N |
Specification |
Qty |
Material |
Surface Finish |
Remark |
|
1 |
Back frame |
1 |
SPCCt1.0 |
Powder coated |
…… |
|
|
|
|
|
|
|
|
3 |
Top cover |
1 |
SPCCt1.0 |
Powder coated |
…… |
|
2 |
Bottom |
1 |
SPCCt1.0 |
Powder coated |
…… |
|
|
|
|
|
|
|
|
4 |
Front door |
1 |
SPCCt1.2 |
Powder coated |
small lock |
|
6 |
Side panel |
2 |
SPCCt1.0 |
Power coated |
...... |
|
5 |
19" Rails |
2 |
SPCCt1.5 |
Powder coated |
...... |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Order Specification |
|
|
|
|
|
|
|
|
Part No. |
Width(W: mm) |
Depth(D:mm) |
Capacity(U) |
Height mm |
|
EW544506 |
540 |
450/600 |
6 |
327 |
|
EW546006 |
6 |
327 |
|
EW544509 |
9 |
460 |
|
EW546009 |
9 |
460 |
|
EW544512 |
12 |
593 |
|
EW546012 |
540 |
450/600 |
12 |
593 |
|
EW544515
EW546015
|
15 |
725
|
|
|

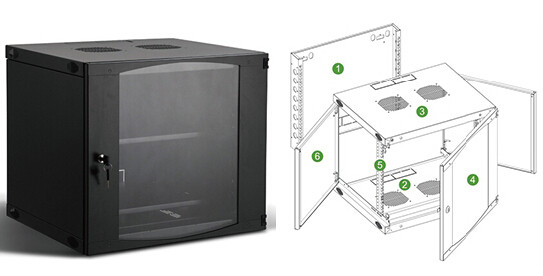

EW Papid Single Section Images
|
